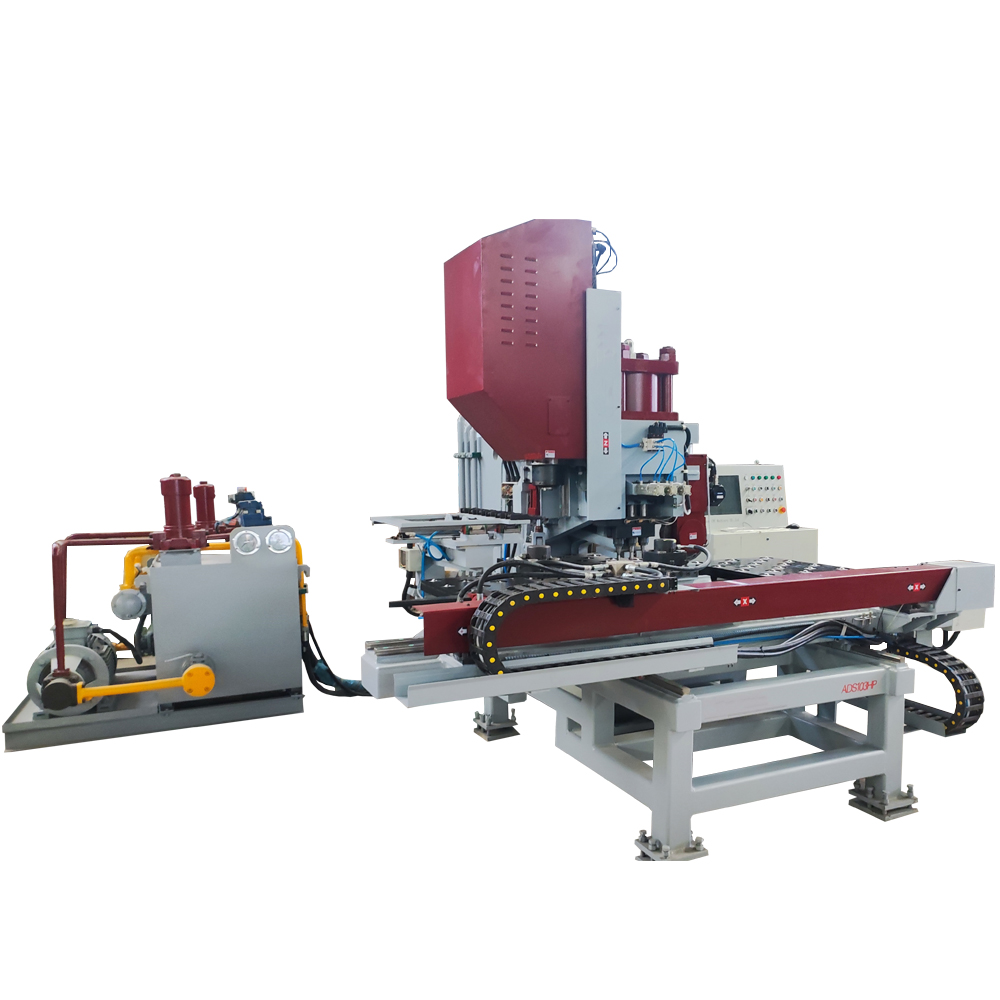

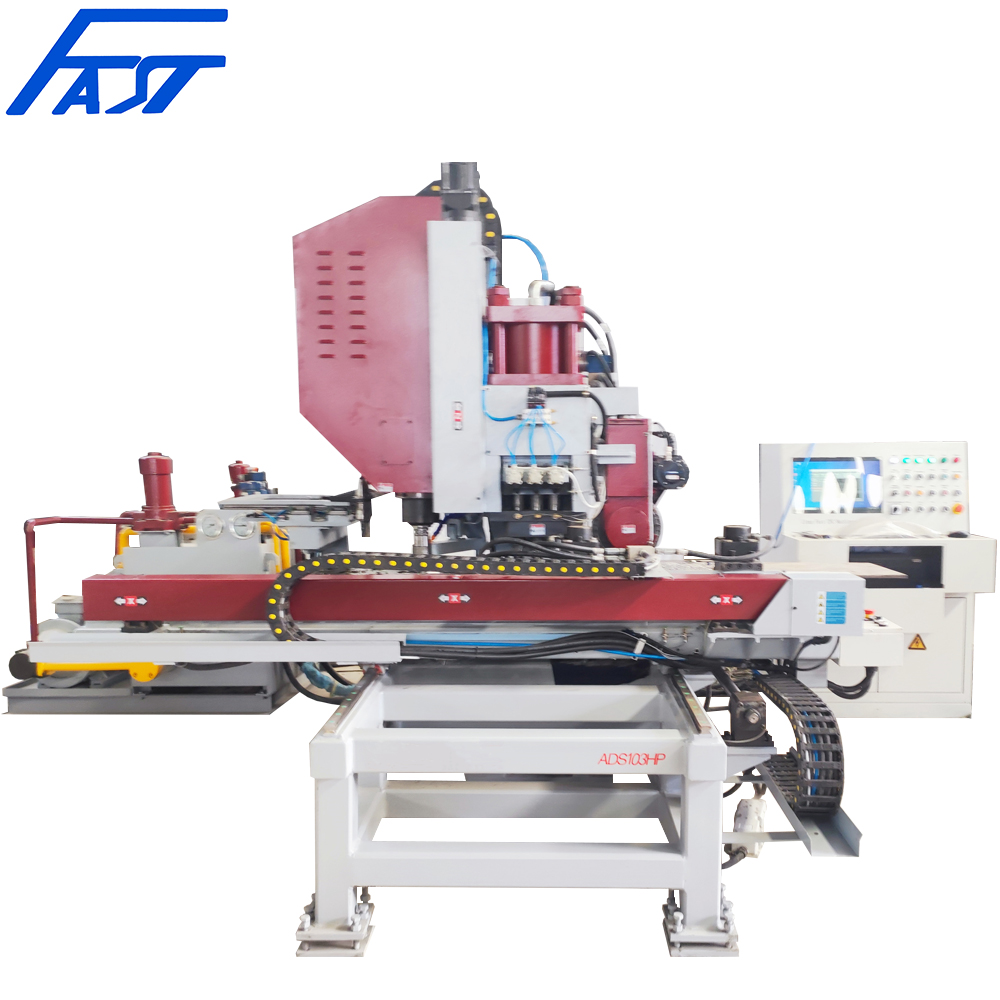

HIGH SPEED CNC HYDRAULIC DRILLING &DISC MARKING MACHINE FOR PLATES MODEL PDM1508-40
1.APPLICATION

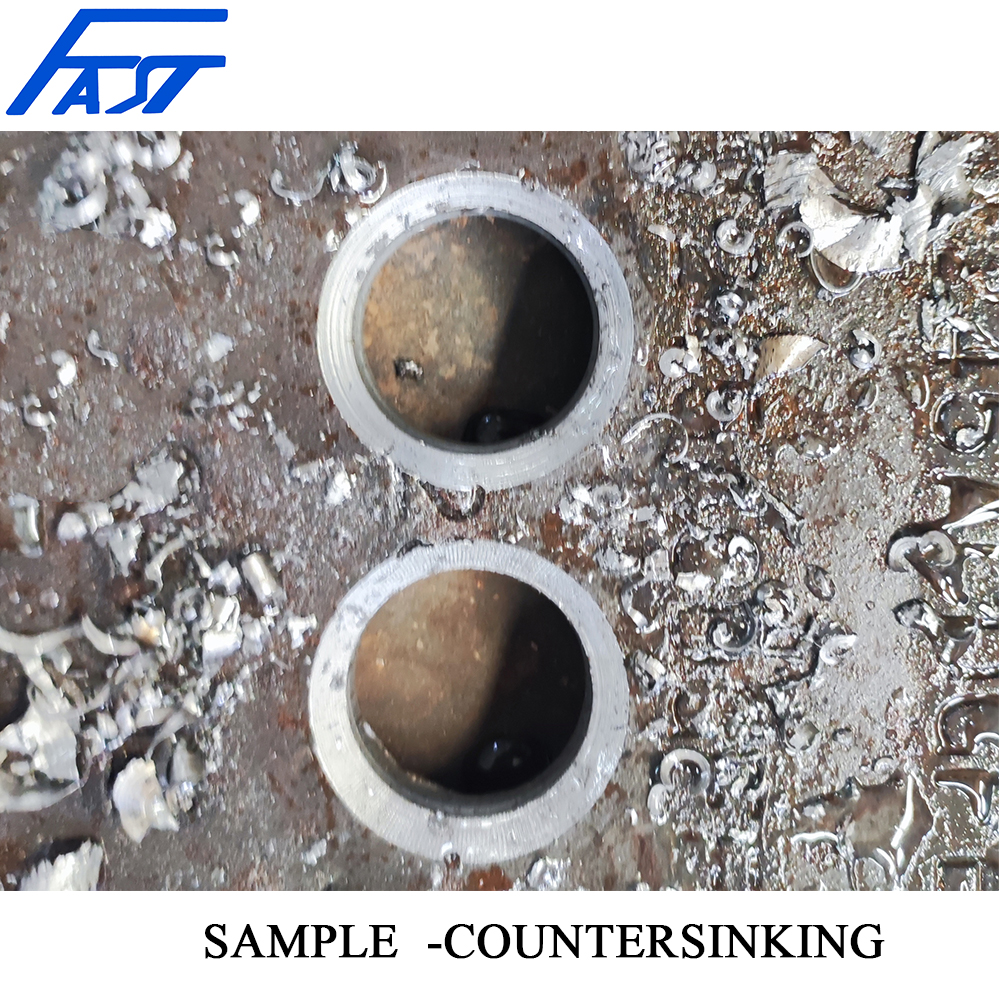

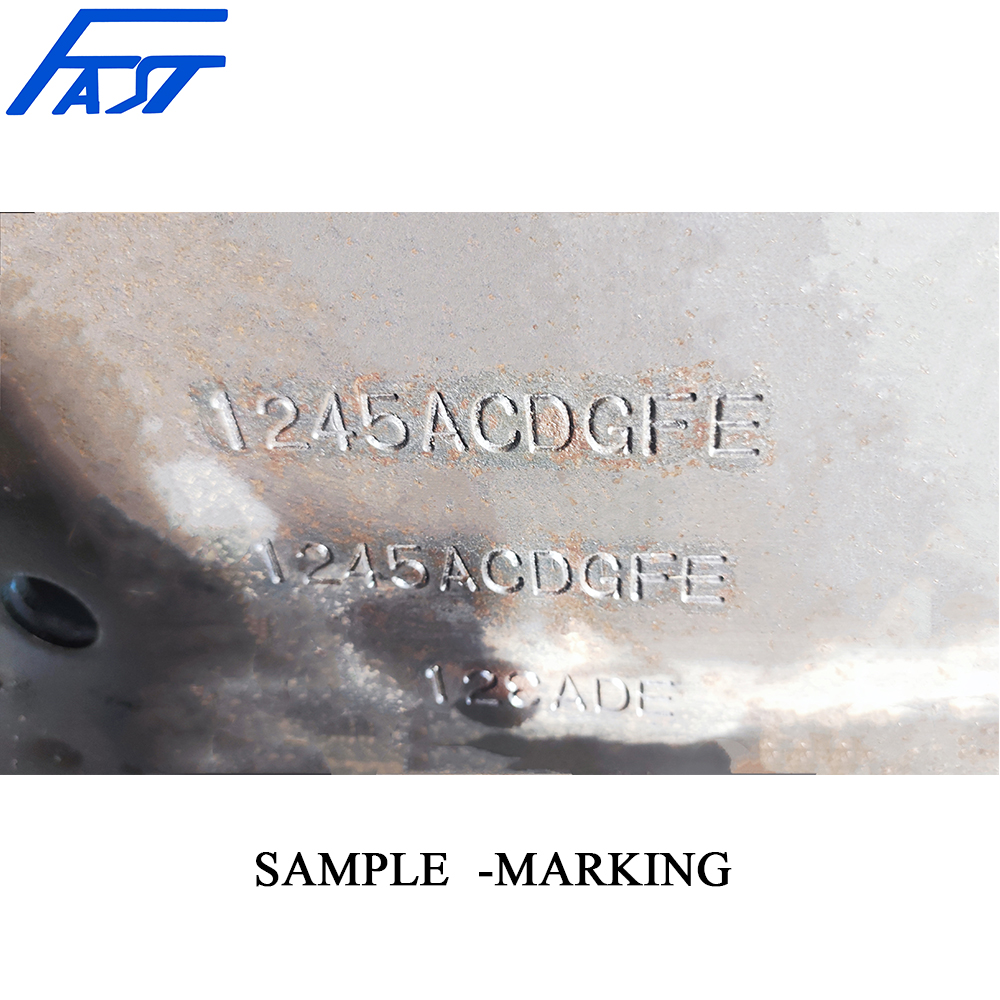

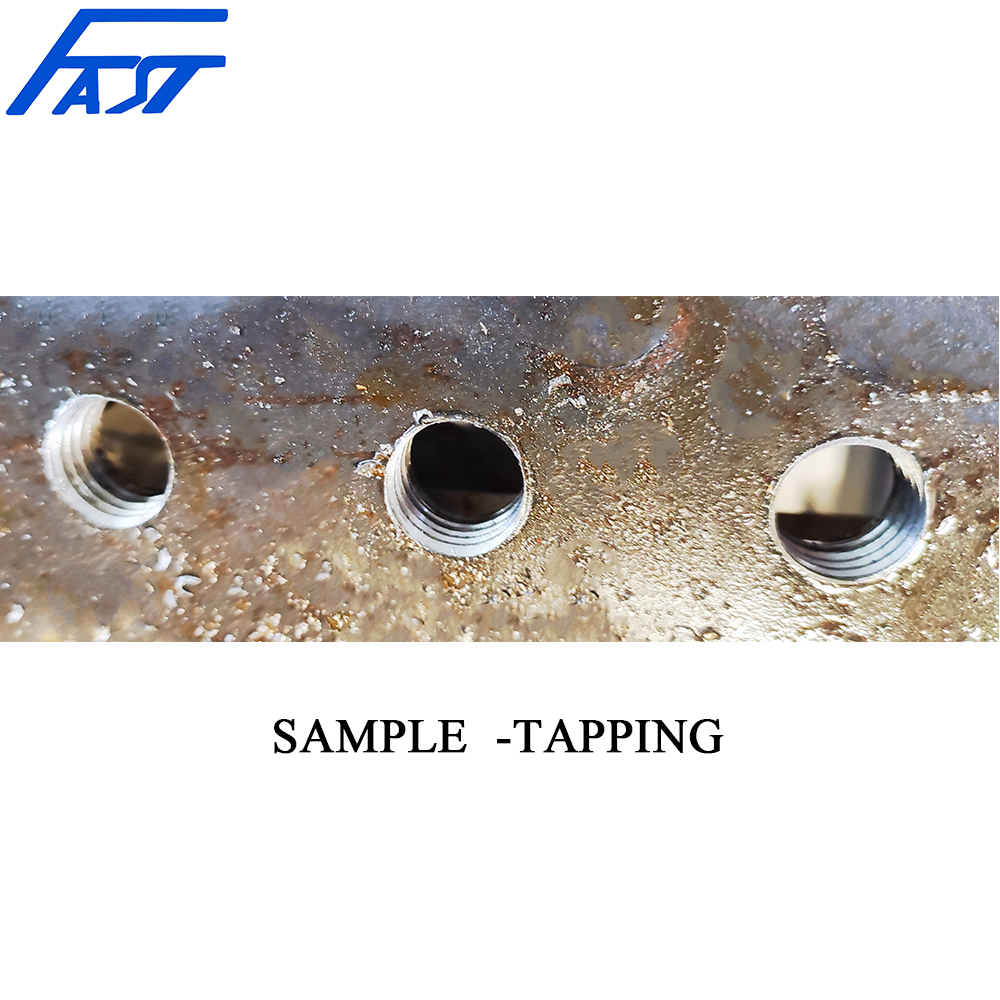

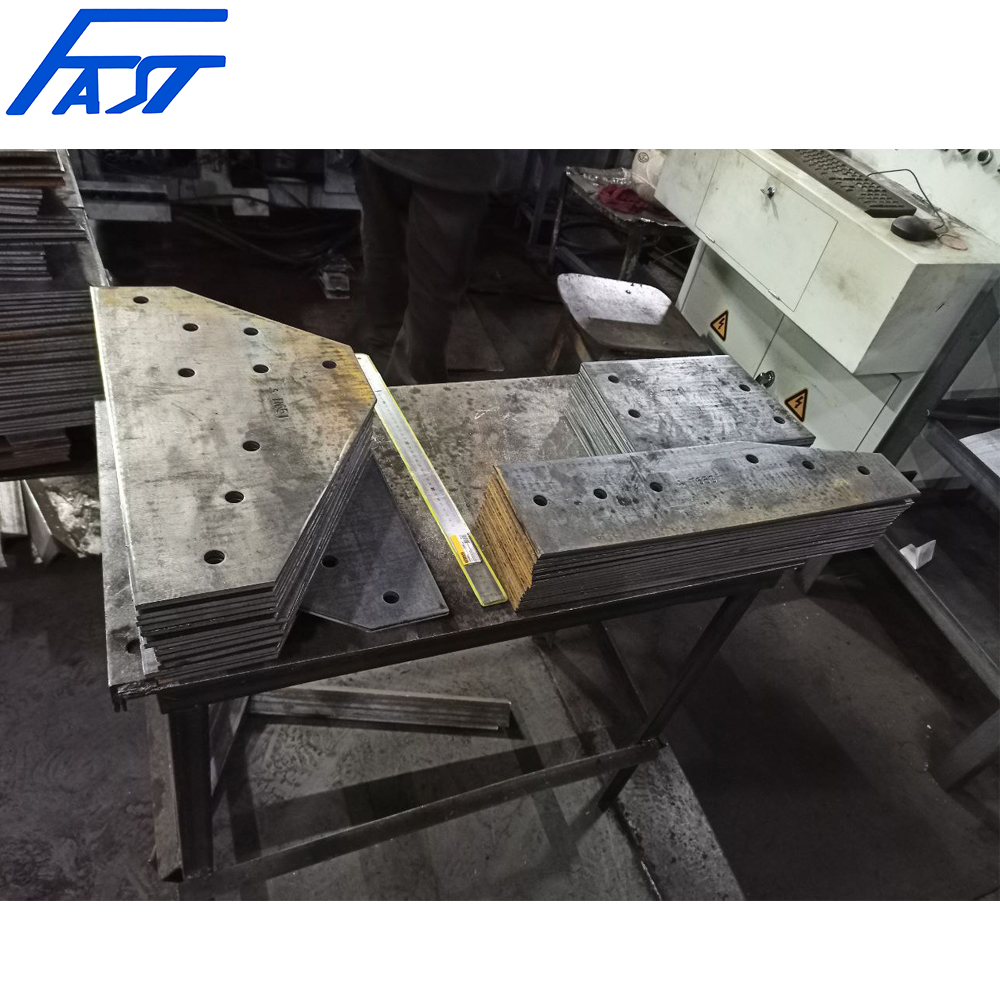

This machine is used for Drilling, Countersinking, Light milling, Tapping, Disk marking on plates in iron tower and steel structure industries.
2.TECHNICAL DATA
Name
Specification
Mode

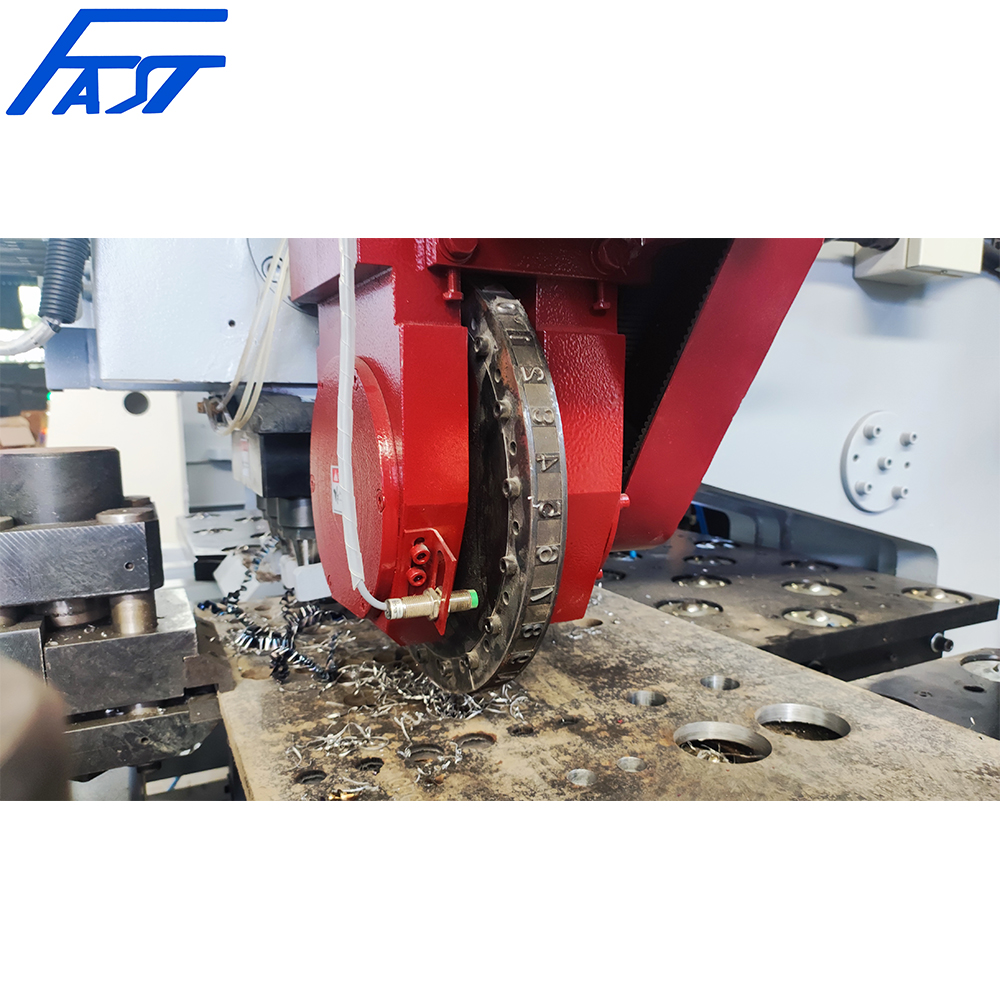

Single arm; Spindle moves up &down; Workpiece
moves horizontally; Disc marking
Table size (L*W)
1500*800mm
Operation to be Performed
Drilling, Countersinking, Light milling, Tapping, Disk marking
Distance between the bottom of the spindle to work table
160~460mm（Spindle Stroke 220mm）
Processing Capability

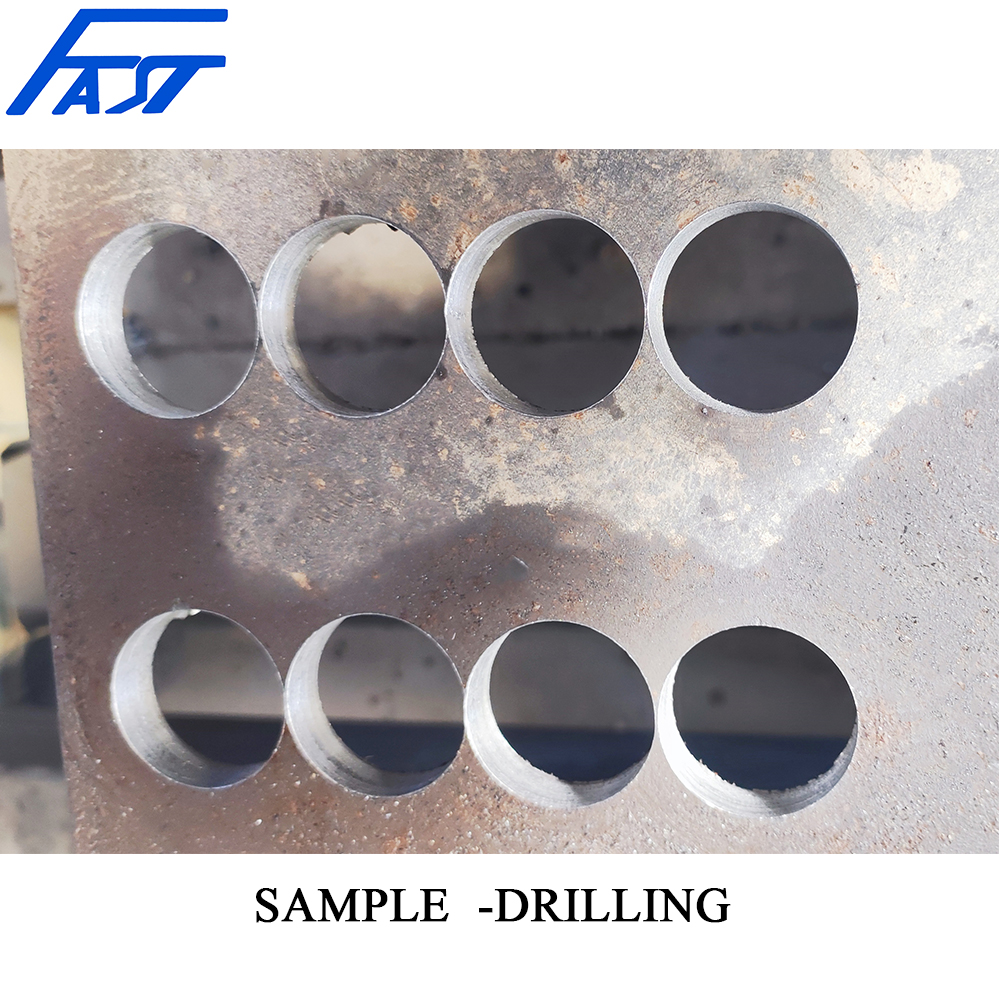

Max. Drilling Diameter
Ф40mm
Milling
M24

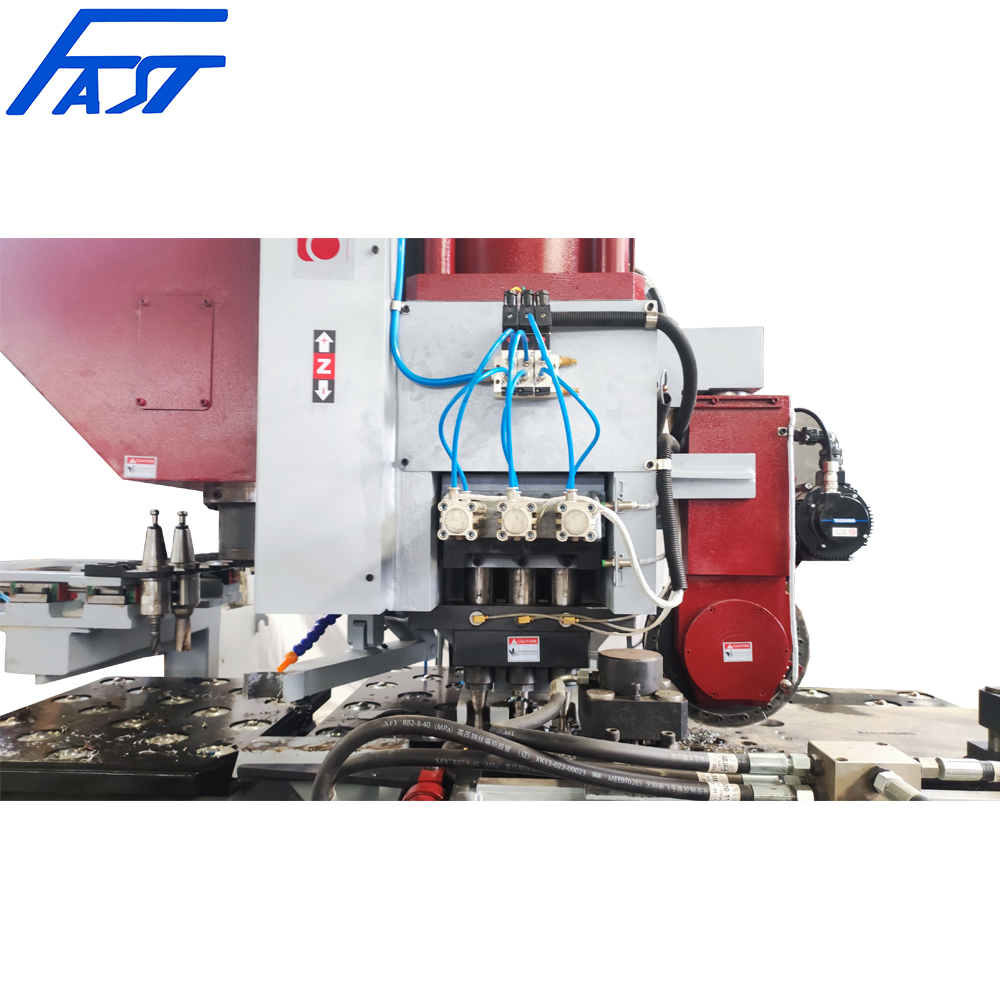

Drilling Power Head
Type of Power Head
BT40
Quantity
1
Drilling spindle feed type
Servo Feeding
Spindle Technical Data
Spindle Power
15kW
Spindle Rotating Speed
0~2500r/min
Main shaft rated output torque
190Nm
Parameters of X Axis
Max. Stroke
1500mm
Speed of X axis
0~8000mm/min
Servo motor power of X axis
2.3kW
Parameters of Y Axis
Max Stroke
780mm
Speed of Y axis
0~8000mm/min
Servo motor power of Y axis
2.2kW
Parameters of Z Axis
Max. Stroke
400mm
Feeding Speed of Z axis
0~4000mm./min
Servo motor power of Z axis
1.6kW

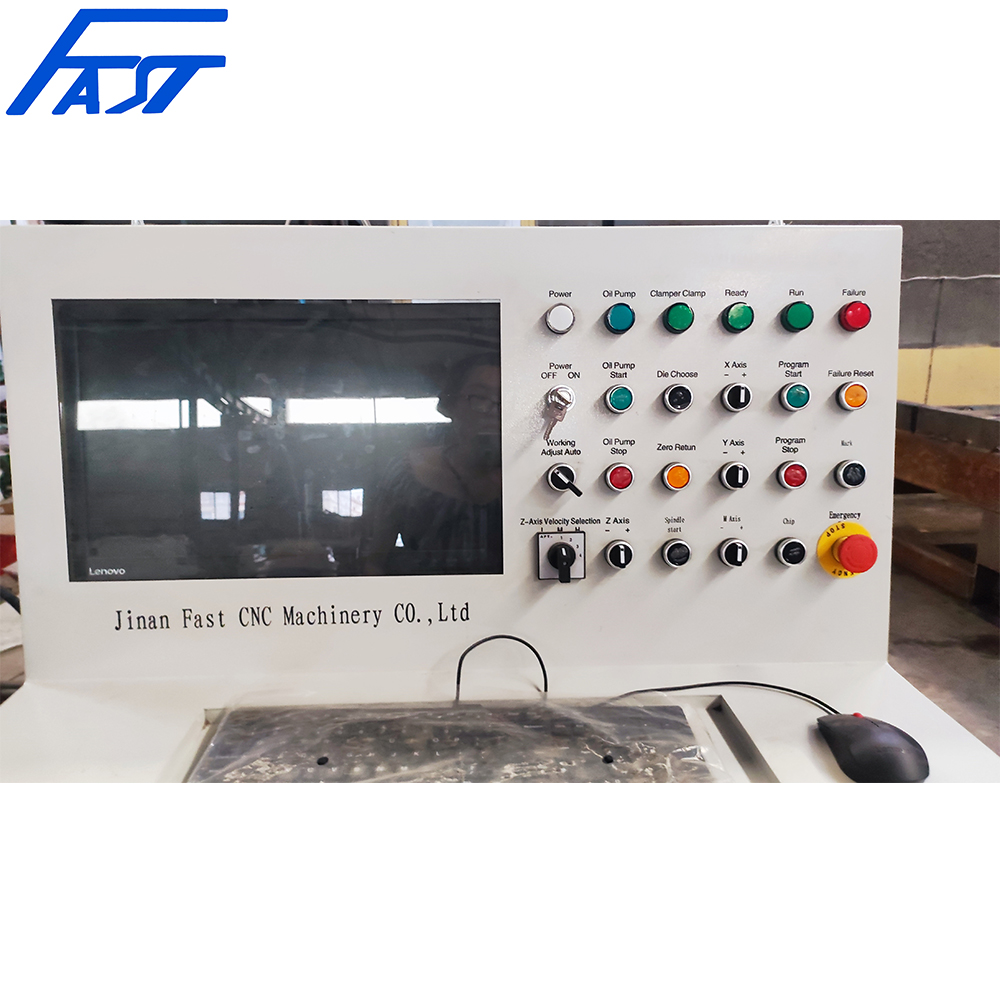

CNC Axes
4 Axes
Machine Accuracy
Positioning Accuracy
＜0.05mm（All Stroke）
Re-positioning Accuracy
≤0.03mm（All Stroke）
Verticality of Spindle to work table
≤0.03mm ( All Stroke)
Run out of the bottom of spindle and the side spindle
≤0.005 mm

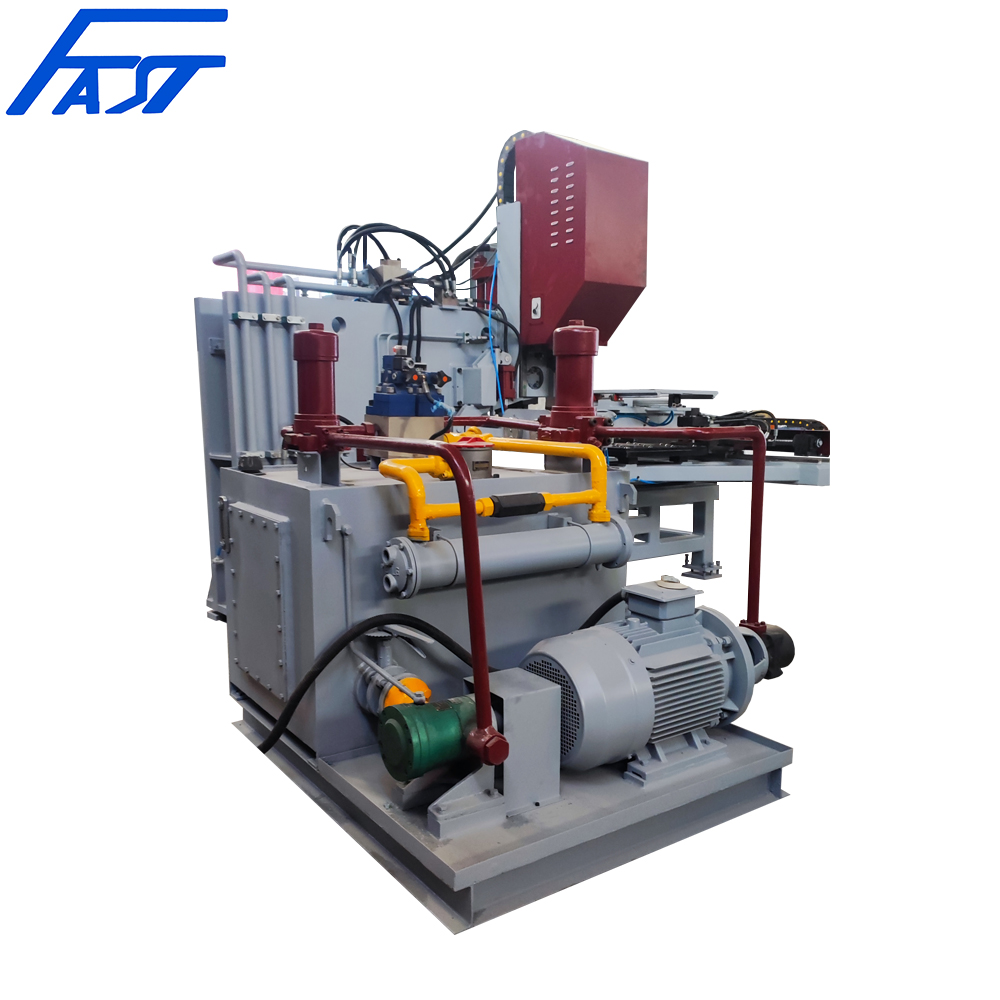

Hydraulic system pressure
4kW, 6MPa
Lubrication system pressure
1.0MPa
Cooling system & filter system
Tool cooling method
mist cooling
Outline dimension(L*W*H)
3250*2300*2600mm
Total Power
Appx.26kW
Net Weight
Approx. 6T
★ All of these models can be customized according to customer requirements.
